AirFRAME® products ship with lens logo inserts loose to avoid damage and/or loss during shipping. They are intended to be installed by the installing contractor in opposite corners of the system with at least one being closest to the main door readable looking up at the system as you walk in the room. Installation instructions below:

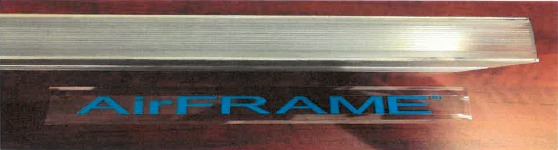

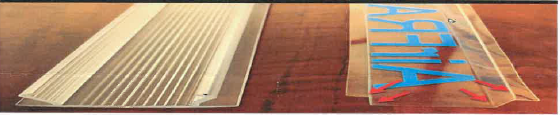

Bend label by hand along pre-creased lines:

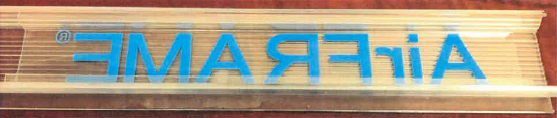

Insert label into the back side of the lens. The lens will slip into the legs of the light lens


Make sure the label is a snug fit

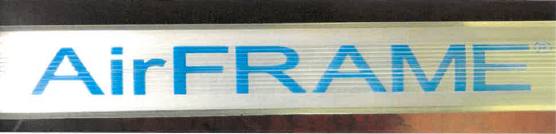

Snap lens back into place
